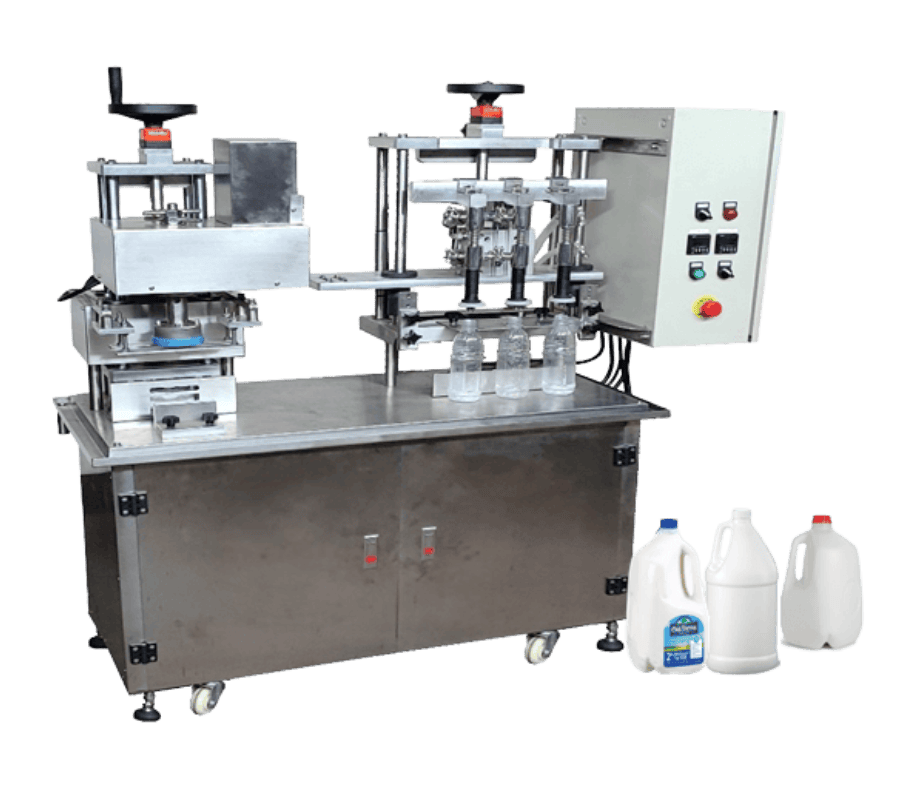

BOTTLE FILLING MACHINE

MODEL: SN-B3

BOTTLE FILLING MACHINE

Power

200V 800w single phase or 3 phase

Capacity

600~1000 bottles per hr. (3 nozzles)

250ml to 1000ml adjustable

Machine Size

L2000 x W1000 x H1800mm

Capability

Conveyorized automatic filling from 300 to 1000ml, no overfill

Air Compressor Requirement

3hp needed but not included (7 bars)

Download PDF here

Simple, compact easy changeable bottle size, the all-in-1 machine.

With cap dispenser & cap tightening device, easy adjustable bottle size, features multi-station functions can be equipped with a variety of filling systems, choices of capping type.

With detachable flexi glass cover.

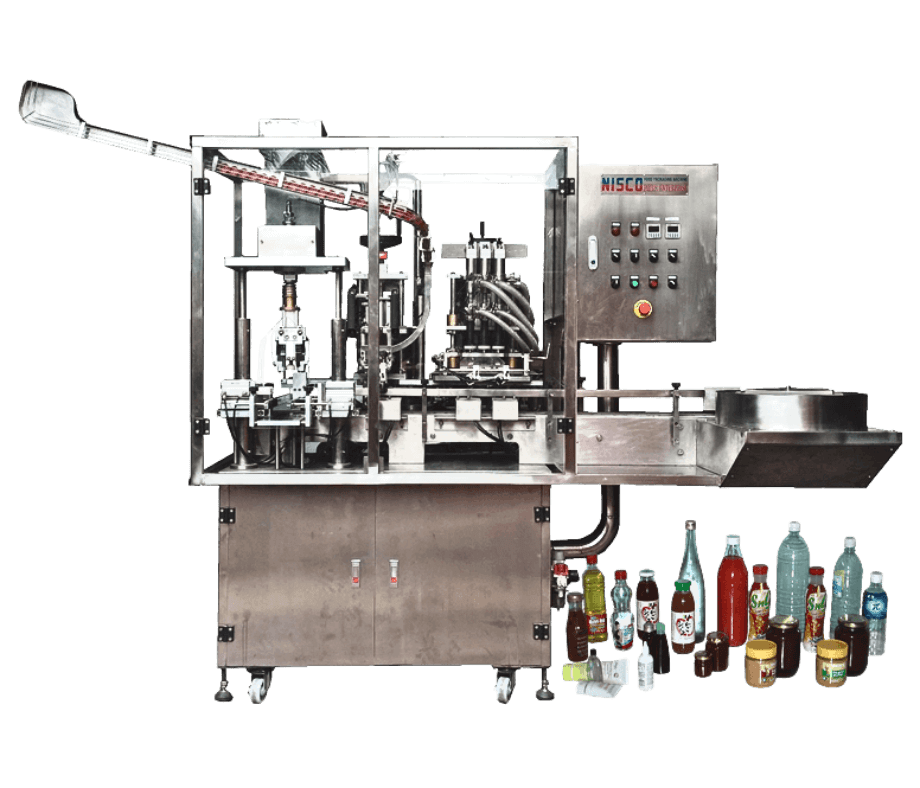

MODEL: SN-B2G

LIQUID FILLING MACHINE

Power

220V 500w single phase or 3 phase

Capacity

600 bottles per hr. base on 500ml

Machine Size

L1520 x W1130 x H1550mm

Capability

200 to 4000ml adjustable fill volume

Air Compressor Requirement

3hp needed but not included (7 bars)

Semi-Automatic filling from 300 to 4000ml with no-overflow sensor, with cap dispenser & cap tightening device, easy adjustable bottle size, can be equipped with variety of filling systems, & capping system with filling tank equipped with overflow float less sensor.

Changeable variety of filling system, choices of capping device.

Simple, compact easy changeable bottle size the all-in-1 machine

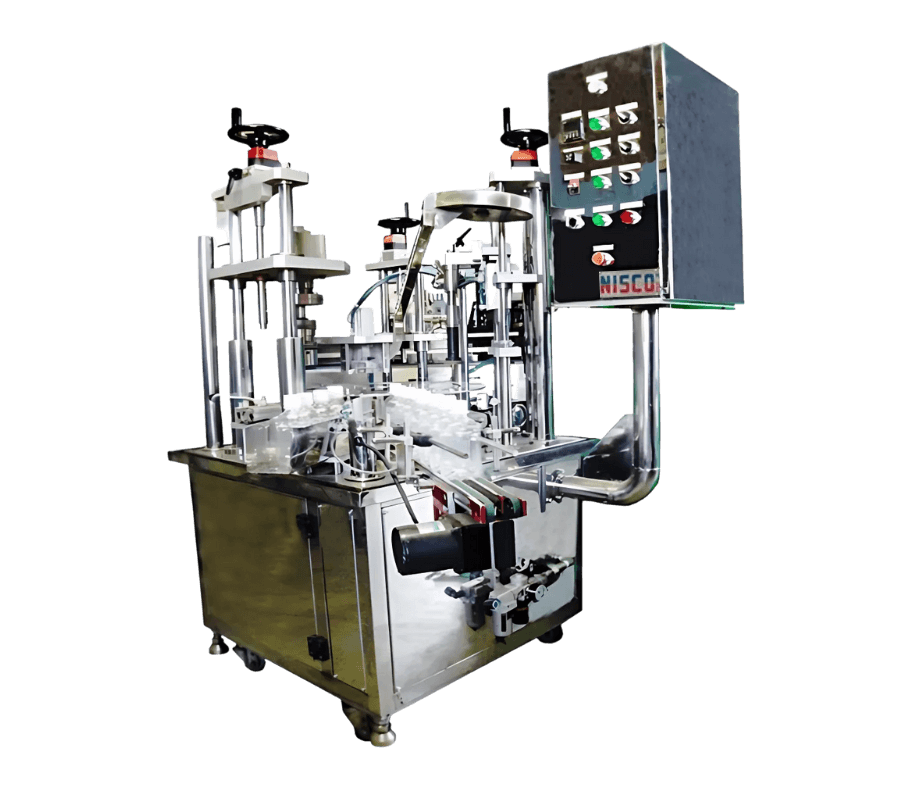

MODEL: SN-B4S

SEMI AUTOMATIC LIQUID FILLING MACHINE
